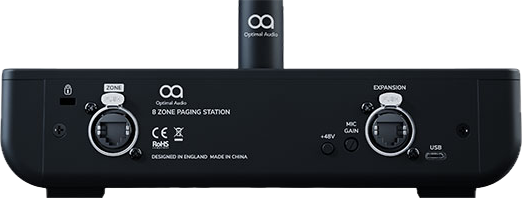

Talk 8 is powered and connected via a single CAT5 cable to a Zone unit. Identify the socket on the rear of the Talk 8 marked ZONE.

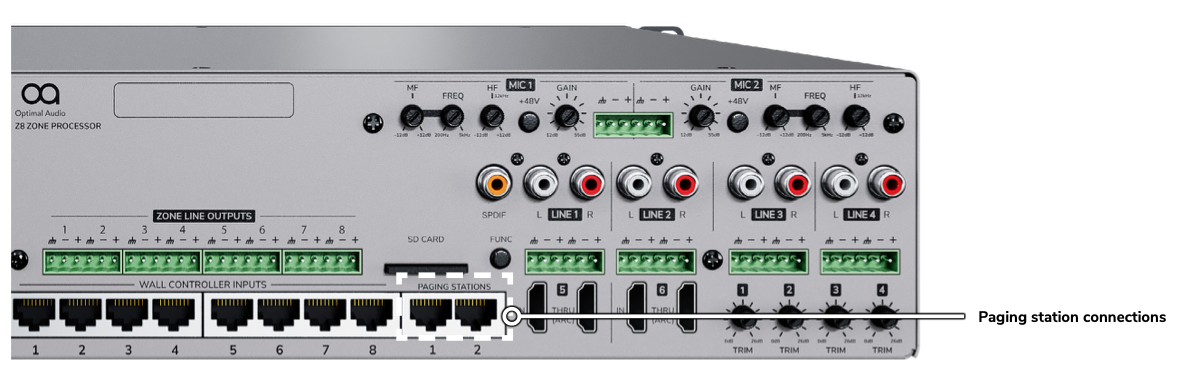

Connect to one of the sockets on the rear of the Zone unit marked PAGING STATIONS. Up to two units can be connected to operate together on Zone 4 / 4P / 8 / 8P.

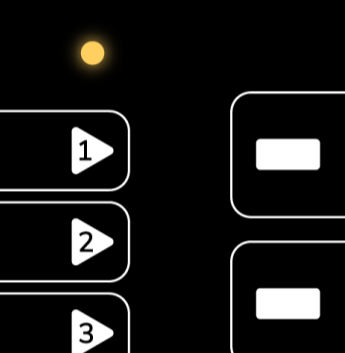

The Talk 8 will update its firmware from the Zone unit in the same way a Zone Pad will if there is an update available. This will be indicated by the Status light flashing orange.
If the Talk 8's status light flashes blue and red, the Talk 8 has failed to establish a connection with the main zone unit, check the CAT5 cable is connected to the socket marked ZONE, and not the socket marked EXPANSION.
Successful connection will be displayed on the Talk 8 by the LED next to the microphone showing white. In WebApp, connected Talk 8 units will display under Settings > Paging Stations.
