To aid usability, unused zones, music sources and microphones can be removed from view on a zone-by-zone basis to provide a cleaner interface.
Navigate to Settings > Zones and select the relevant Zone you wish to hide elements of. Scroll down to Visibility for the configuration options:
Hide zone for users

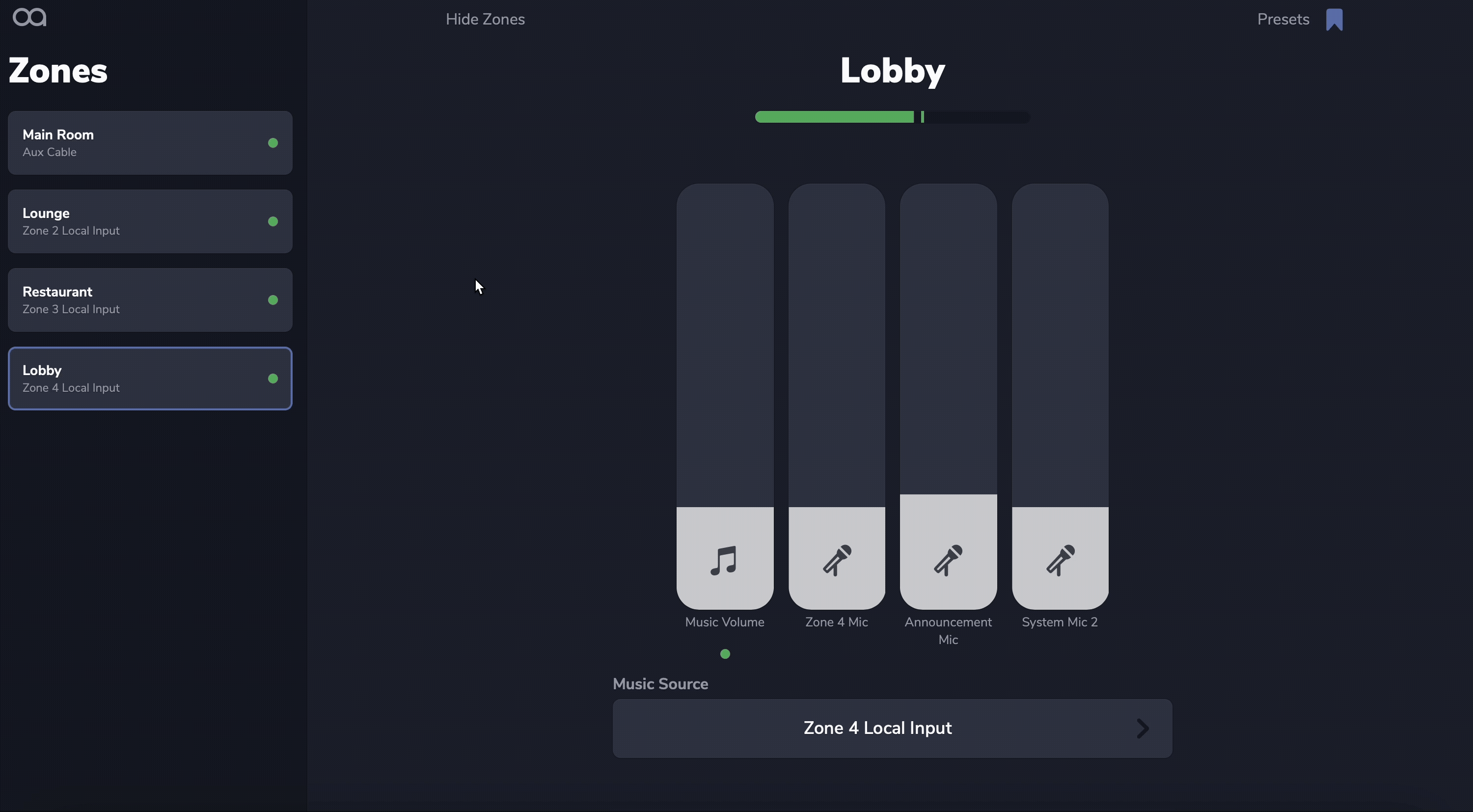

To hide an entire zone from view, all you need to select is 'Hide zone for users'. Upon returning to the Zones tab from the home page, you will notice that the hidden zone is no longer visible.
In the Zone Settings menu within the main Settings section, the zone name will have (hidden) next to it to signify it is not visible.
Hiding individual zone elements
If you want to keep a zone visible, but hide individual elements such as unused inputs or microphones, select which elements you wish to hide by ticking the box next to them.
In this example we have hidden HDMI Input 2 and line inputs 3 and 4 as well as System Mic 2 from Zone 1 as they are not in use for our example venue.
Top tip - having two instances of WebApp open at the same time allows you to see these changes occur in real time.
Single Zone Systems

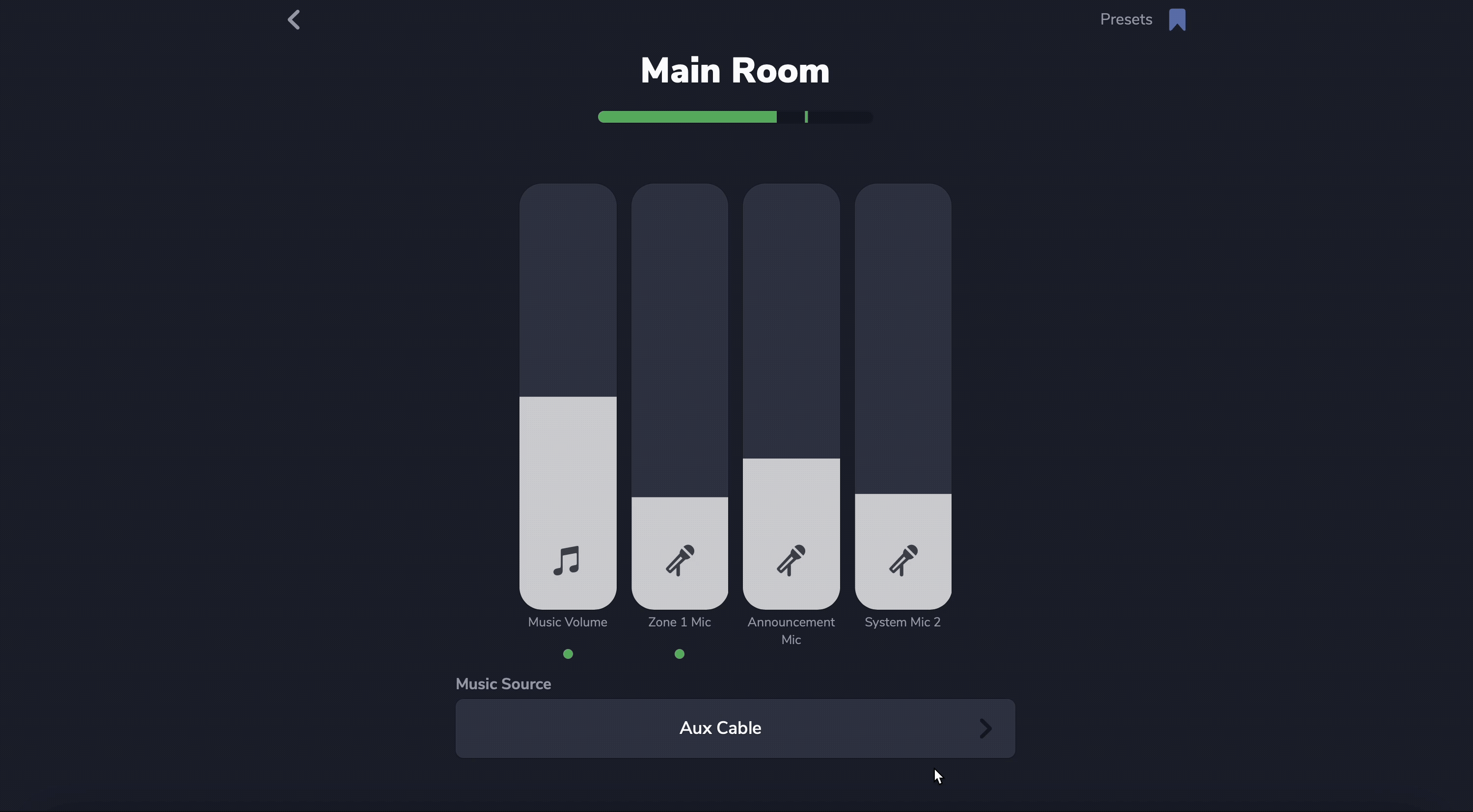

In single zone systems, a single Zone view can be presented without any navigation icons on the left of the screen. This is intended to be pinned to the Home Screen which gives a full-screen app feel with no URL bar.
Navigate to Settings > Zones and select the relevant Zone. Scroll to the bottom and click the Open Single Zone Control Panel button. You will be presented with a screen similar to this, containing the visible sources for the single Zone.
