Navigation
From WebApp home screen, go to - Settings > System > Settings

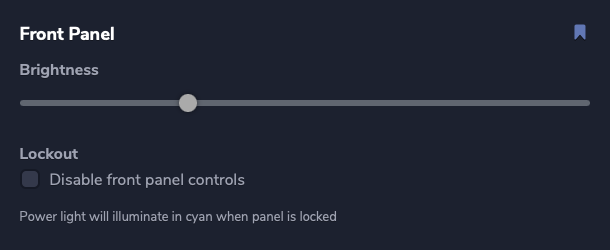

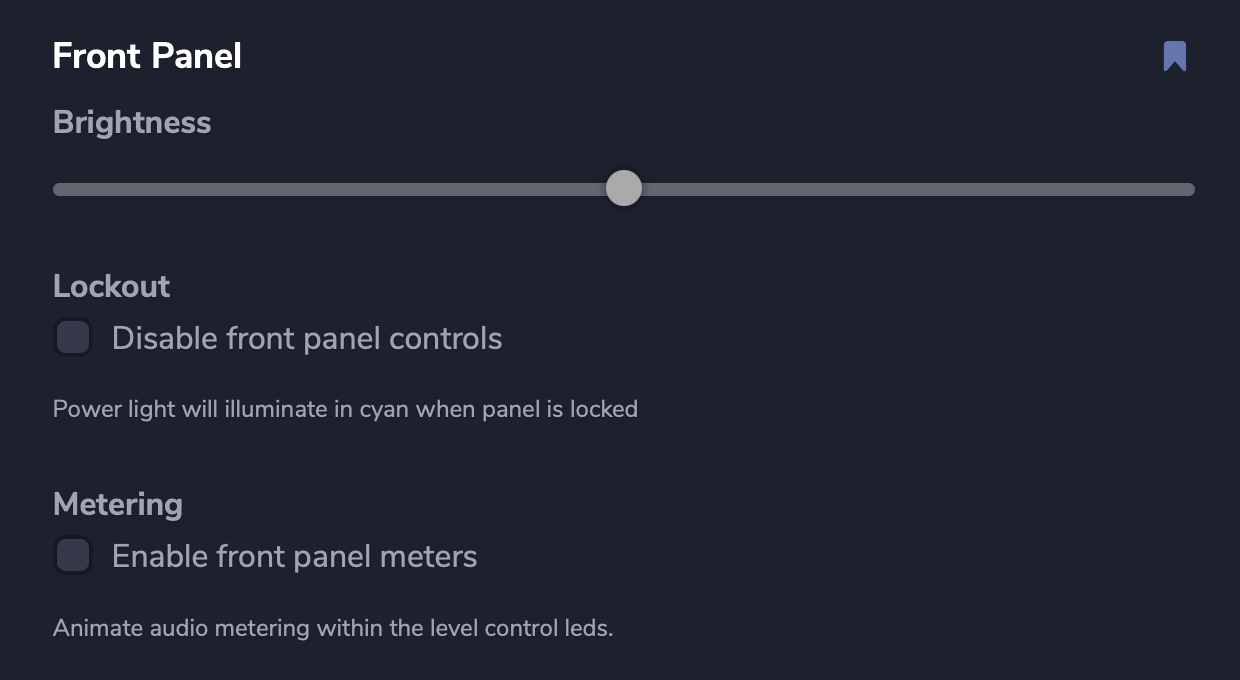

Front Panel Brightness
Use this to adjust the brightness of the front panel controls on your Zone. Sliding the control to the right will increase the brightness.
The bookmark icon allows you to assign front panel brightness to a routine. See WebApp - Routines.
Lockout
Checking 'Disable front panel controls' will turn off and lock all controls on the front panel of your Zone unit. The power light will illuminate cyan to signify this. To re-enable front panel control, simply uncheck this box.
Front panel lockout can also be added as part of a brightness routine. For example, shutting off the front panel LEDs outside of working hours to reduce LED burn and save energy.

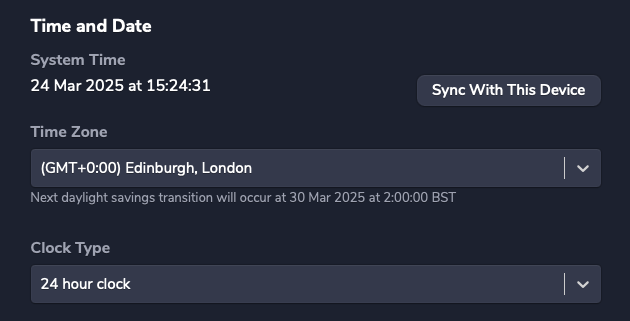

Time and Date
If you are using Routines it is very important that the internal clock on your Zone is accurate. Select 'Sync With This Device' and use the Time Zone selection to make the necessary adjustments to bring the date and time in line with a clock that you refer to regularly. Here you can also set to the Clock Type to a 24 hour or 12 hour format (e.g. 15:00 or 3:00 pm), depending on your preference.
It is necessary to do this once and the unit will then keep time, unless it has been switched off for a sustained period. If the unit has access to the internet, then the time will be set automatically by a network time protocol (NTP).
Delay Units
Select the unit of measurement you would like the line/amplifier output Delay setting displayed in from the drop down. Choose between milliseconds (default), metres or feet.
Level Controls
Select level control mapping. For more information please see WebApp - Enhanced Volume Control.
