Global presets capture the user settings across all zones.

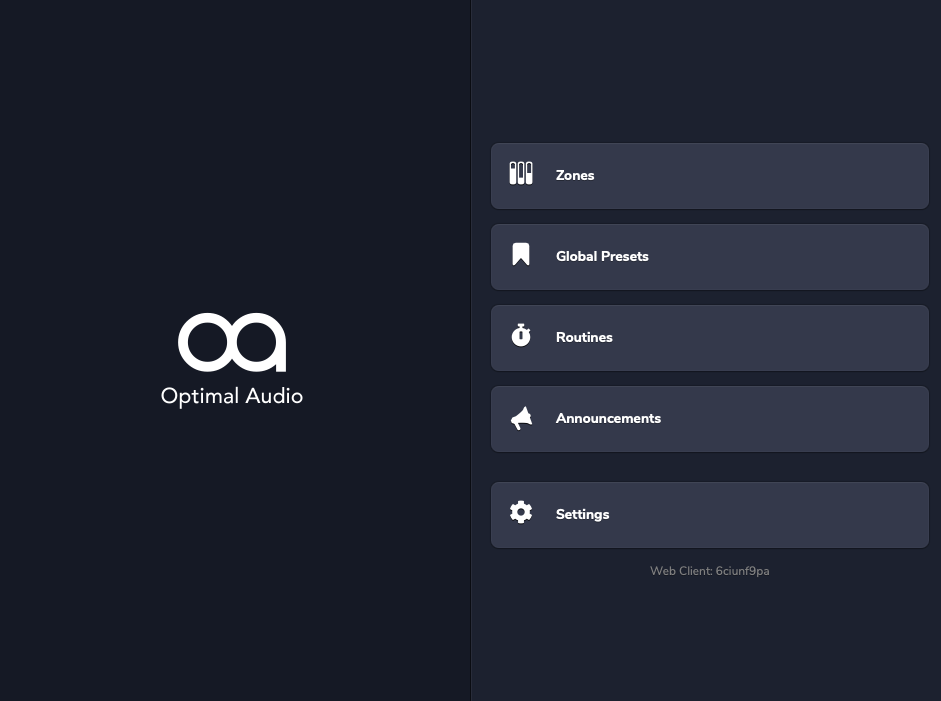

Access to Global Presets is from the landing page of WebApp.
Global presets are useful ways of quickly recalling a zone level and source parameters across an entire installation.
An example would be a Sports Bar where sports events are shown on a big screen. At opening time background music would play at a low level in the entire bar.
At game time the background music could be routed to areas other than the bar where the game is being shown. In the main bar the screen sound would be selected and the level set for those watching the screen. All of this can be achieved in an instant by recalling a global preset.
Once you have set all zones to the desired sources and volumes, go to the global presets page, then click the + icon in the top right corner to create a new global preset.
Name the preset.
To recall a global preset, go to the Global Presets page from the WebApp landing page and click the desired preset.
Global Presets can be managed in exactly the same way as audio processing presets.
