The ZonePad VL1 is a passive, single-dial volume controller for the Optimal Audio SmartAmp range. It mounts in a standard back box and connects via a 3-pin terminal block.
Connecting VL1 to SmartAmp
Note - Always power off the SmartAmp before wiring or unwiring the VL1.

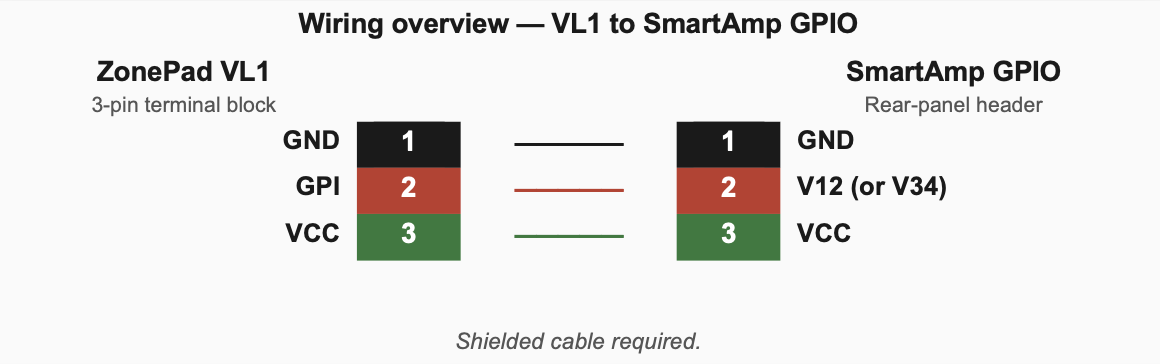

Pin Assignment
| VL1 pin | SmartAmp | Notes |
|---|---|---|
| 1 GND | GND | Ground/shield |
| 2 GPI | V12 (or V34) | Control voltage |
| 3 VCC | VCC | 3.3 V supply |
Dual-zone (SmartAmp 20/30): wire a second VL1's pin 2 to V34. Use shielded cable
Start using your VL1
- With the SmartAmp powered off, fit the VL1 info its back cox and connect the supplied 3-pin terminal block.
- Set the SmartAmp front-panel channel gain to the desired maximum level - the VL1 attenuates to from this point.
- Power up the SmartAmp and apply signal.
- Rotate the VL1 dial fully anti-clockwise (min) then clockwise (max) to confirm smooth level control.
UK/EU variant
- Dimensions - 85.8 x 85.8 x21.6 mm
- Fits UK/EU single-gang back box
- Fixing centres 60.6mm
- PN - ZonePad VL1-UK-W
US variant
- Dimensions - 70 x 114 x 21.6 mm
- Fits US 1-gang decora back box
- Fixing centres 83 mm
- PN - VL1-US-W
